Exploring the RP2350’s UART-Bootloader - The RP2350 has a few advantages over its predecessor, one of which is the ability ... - https://hackaday.com/2025/05/11/exploring-the-rp2350s-uart-bootloader/ #microcontrollers #microcontroller #uartbootloader #rp2350 #uart

WhippyTerm - Home https://whippyterm.com/ #embedded #terminal #console #windows #RS232 #RS422 #RS485 #linux #vt100 #ansi #dump #uart #GUI #TTL #hex #i2c #spi #tcp #udp #ip

Figured out my SA818 programming problem: I had the tx and rx lines backwards. I was under the impression that in UART, the tx pin on the first device was connected to the rx pin on the second. However, the cheap Chinese USB adapter I have wants tx to tx

Good thing the description on the website is written in passable English, it had enough to get me on the right track.

Liebe Nerds,
kennt sich jemand gut mit #UART etc aus? Ich versuche, #valetudo auf einem Xiaomi X10 Plus zu installieren. Leider kann ich das root PW nicht eigeben. Bei der Eingabe (egal wie) gehen immer einige Zeichen verloren. jemand im telegram channel schrieb was vom input speed oder so. ich habe aber brutal keine ahnung. hier die anleitung:

https://valetudo.cloud/pages/installation/dreame.html#uart

How a Tiny Relay Became a USB Swiss Army Knife - Meet the little board that could: [alcor6502]’s tiny USB relay controller, now evo... - https://hackaday.com/2025/04/05/how-a-tiny-relay-became-a-usb-swiss-army-knife/ #microcontrollers #swissarmyknife #computerhacks #linuxhacks #swissknife #pcbhacks #boot0 #relay #servo #stm32 #news #uart #usb

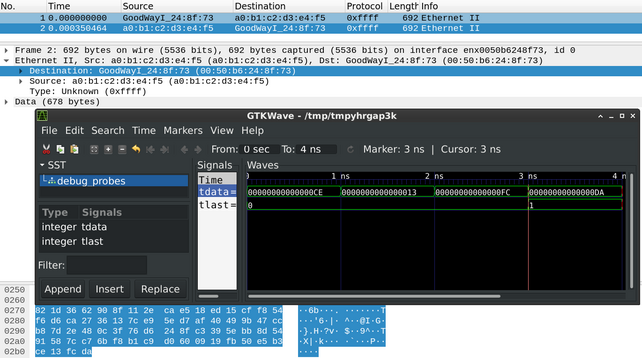

So what can you do with the ability to read arbitrary #FPGA registers out of your design over #UART? Capture time series data (last four #ethernet packet bytes) in your regs and write a little #python script that launches #GTKWave and you have yourself a tiny homemade cross platform logic analyzer thing!
https://github.com/JulianKemmerer/PipelineC/wiki/Example:-Debug-Probes

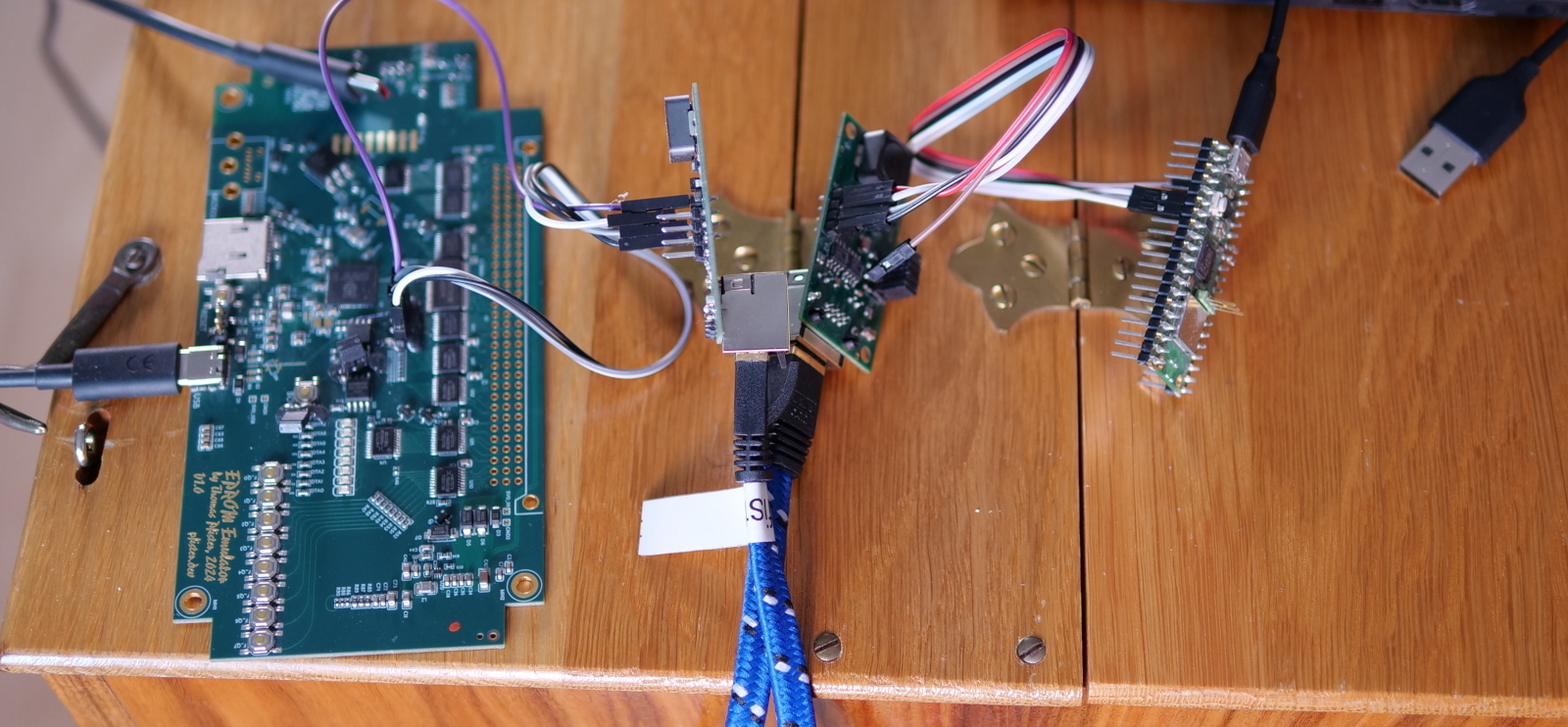

Say I am debugging an #ethernet project on the #ice40 #fpga of pico-ice board. I want to know the contents of some registers down in my design (which destination MAC address my #hardware tried to transmit). I don't want to use manufacturer specific ILAs and don't want to hand route a bunch of debug signals to my top level for external #debug equipment I don't have.

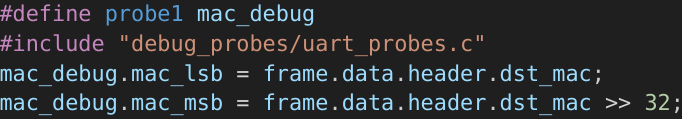

In PipelineC just assign to a globally visible #UART debug probe wire:
https://github.com/JulianKemmerer/PipelineC/wiki/Example:-Debug-Probes

UART/I2C firmware for https://www.tindie.com/products/8086net/rp2040-interfacer-uarti2c/ RP2040 Interfacer is now available on https://github.com/8086net/RP2040_Interfacer-UART_I2C

(it's also supported by CircuitPython https://circuitpython.org/board/8086_rp2040_interfacer/ )

Anyone know enough about the ATmega328 to know if the UART can cope with something else disabling interrupts for ~2mS...?

That sounds like quite a lot to me.

This is for handling MIDI, so I think at 31250 that would be enough for up to two complete 3-byte messages to have gone past...

Am about to pile into the datasheet, but the UART was always a bit of "mystery magic that just worked" for me...

Come learn some PipelineC #HDL basics featuring the pico-ice dev board from tinyVision.ai! It has a Lattice Semiconductor @latticesemi #ice40 #FPGA and @Raspberrypi. This intro talk will cover #LED, #UART, and #VGA projects using OSS CAD Suite tools. #hardware #RTL #Verilog #VHDL #HLS

In the mood for the littlest bit of #FPGA #GameDev? Check out this pico-ice based #pong demo. Just need #VGA #pmod and #UART connected to host PC. #HDL #hardware #RTL #Verilog #VHDL #HLS #lattice #ice40 https://github.com/JulianKemmerer/PipelineC/blob/master/examples/pico-ice/ice_makefile_pipelinec/pong_top.c

Just discovered Matt Brown’s hacking #IoT channel and was amazed how quick it is to extract basically everything from an off the shelf #TPLink cellular device with #UART and some USB flash readers. It has 1M views so I’m probably late to the party but check it out anyway.

https://www.youtube.com/watch?v=clESYc9BDvc

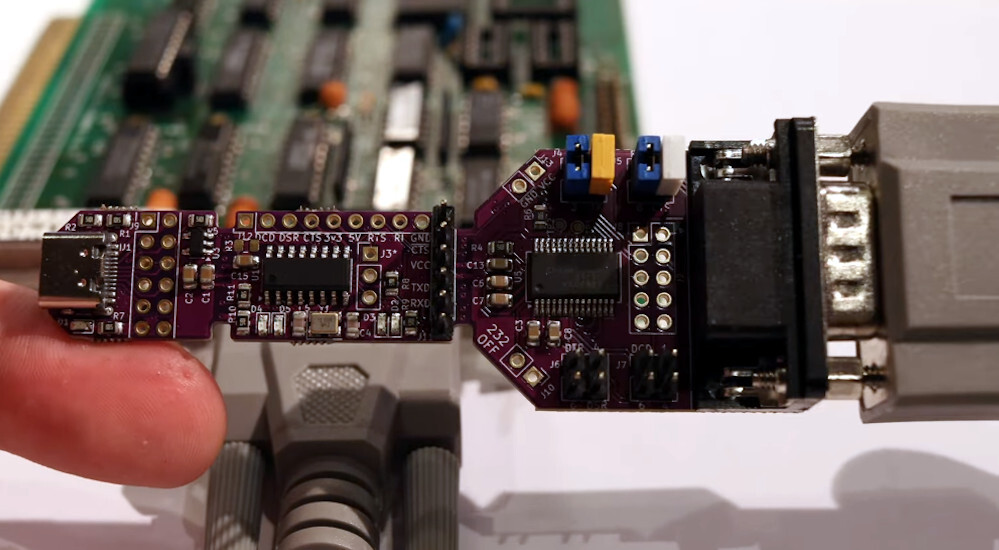

Break Me Off a Piece of That Open Source Serial Adapter - We know, you’ve already got a USB to serial adapter. Probably several of them, in ... - https://hackaday.com/2024/12/25/break-me-off-a-piece-of-that-open-source-serial-adapter/ #serialadapter #usbtoserial #toolhacks #pcbhacks #rs232 #uart

Neuer Blogpost zu Nutzung von #Logic-Analyzern und der Software #PulseView, um einen Hardware-Bus wie #I2C, #SPI oder #UART zu belauschen. Wenn bei #IoT-Geräten mit Sensorik und Aktorik herausgefunden werden muss, ob der Fehler Software oder Hardware betrifft, entpuppen sich günstige #Logic-Analyzer mit dem #OpenSource Programm #PulseView als wahre Tausendsassa. Einstieg, die Protokollanalyse folgt in späterem Artikel https://oer-informatik.de/logicanalyzer #elektronik #arduino #microcontroller
