Sooner or later I will be able to do it, for now it seems that something is improving, I managed to create an #IGES file exported directly by #Blender, and also a #STEP file always with the same #Python add-on. #b3d #CAD #SubD #nurbs

I've asked to #AI, an add-on to export #SubD to #NURBS from #b3d, the add-on managed to export something to both IGES and STEP, there are no errors, the exported files contain data structures but unfortunately any #CAD app managed to open those, although that seem like a failure, it's not, in fact it is the first time that I get an add-on that exports both in #IGES and in #STEP directly from #Blender without using external library, maybe next time I could be able to have a working add-on.

I'm not happy with this, but it was an overrated application, as well as being very expensive, for what it offered, with exceptional marketing behind it, important contacts in the #VFX industry that allowed it to take advantage of an undeserved advantage, in some videos they mocked other applications, but in the end, they decided to stop development, a shame for those who believed in this project. #modo #Foundry #2D #mesh #SubD #b3d #Blender #Blender3D

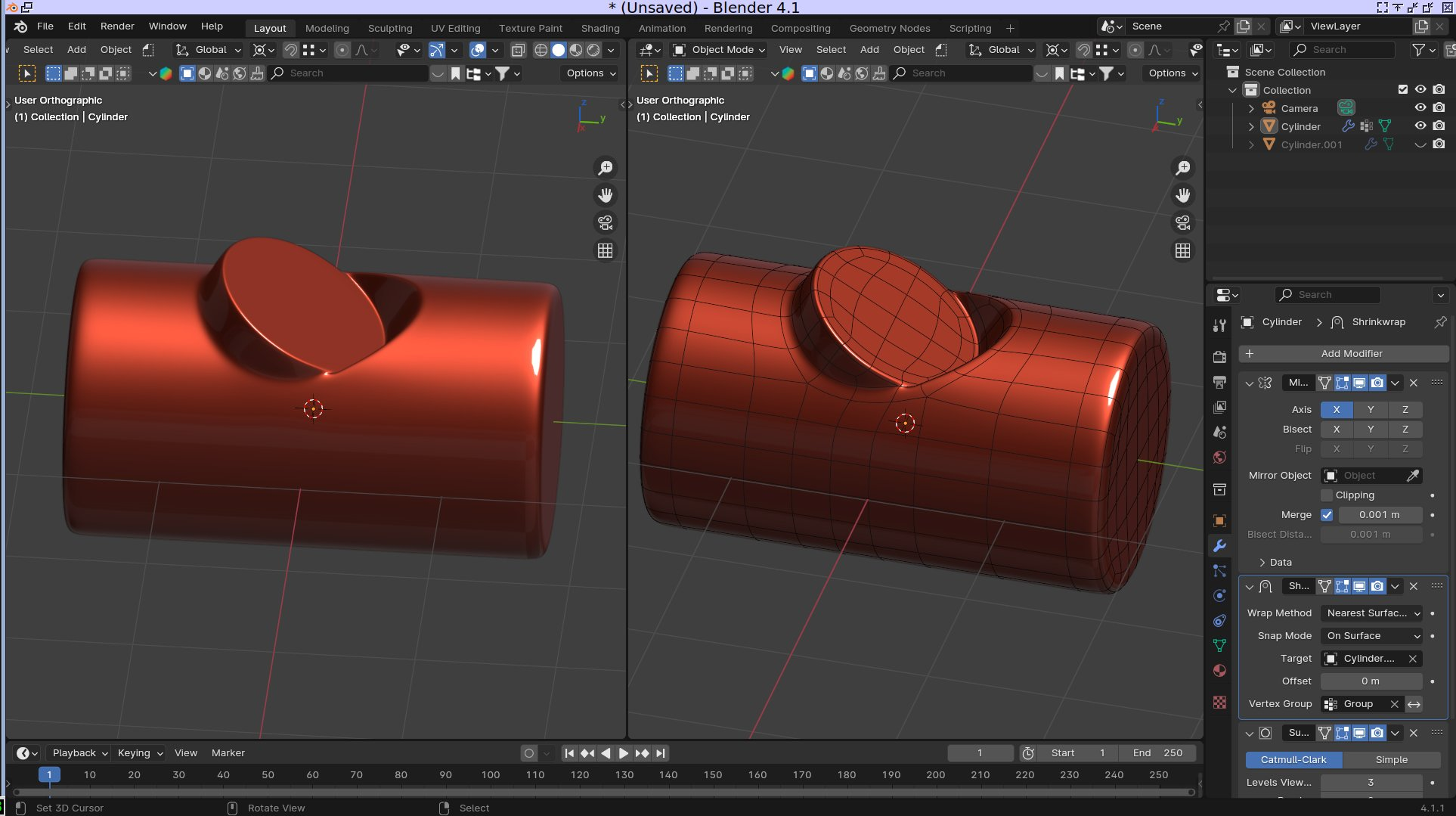

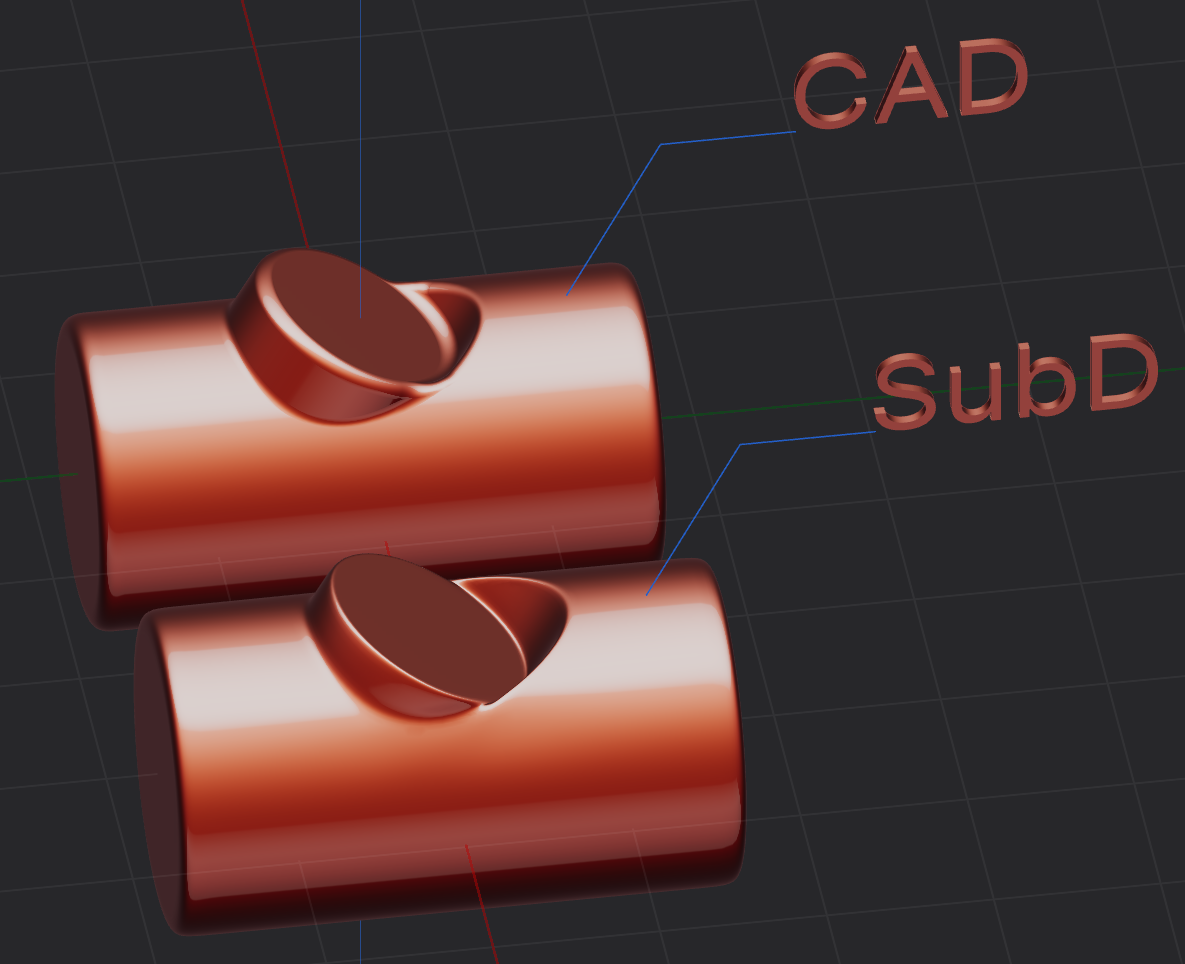

Just for fun, I've redone it with #SubD and quad topology with edge loops, in #Blender3D, total time 15 minutes. #b3d #Blender

Quick hard surface doodle (subd+bools practice). Textured with #SanctusLibrary

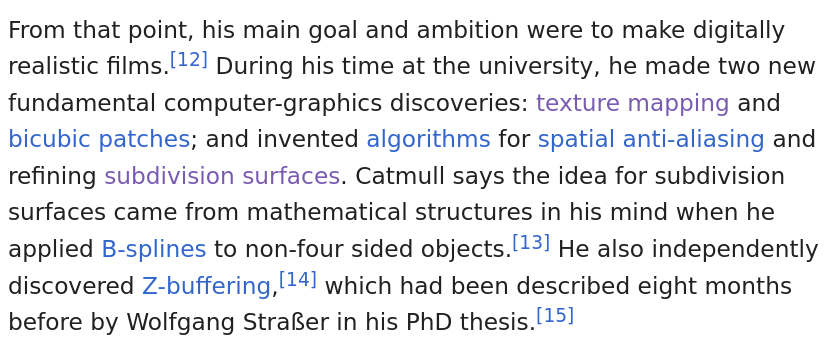

These days I was thinking about subdivision surfaces, which were invented by Ed Catmull to allow greater freedom than #NUBRS in animation, but they have become a tool used everywhere allowing greater freedom, however a concept that has never evolved. I loved the "bicubic patches" applications. #SubD #CAD

https://en.wikipedia.org/wiki/Edwin_Catmull

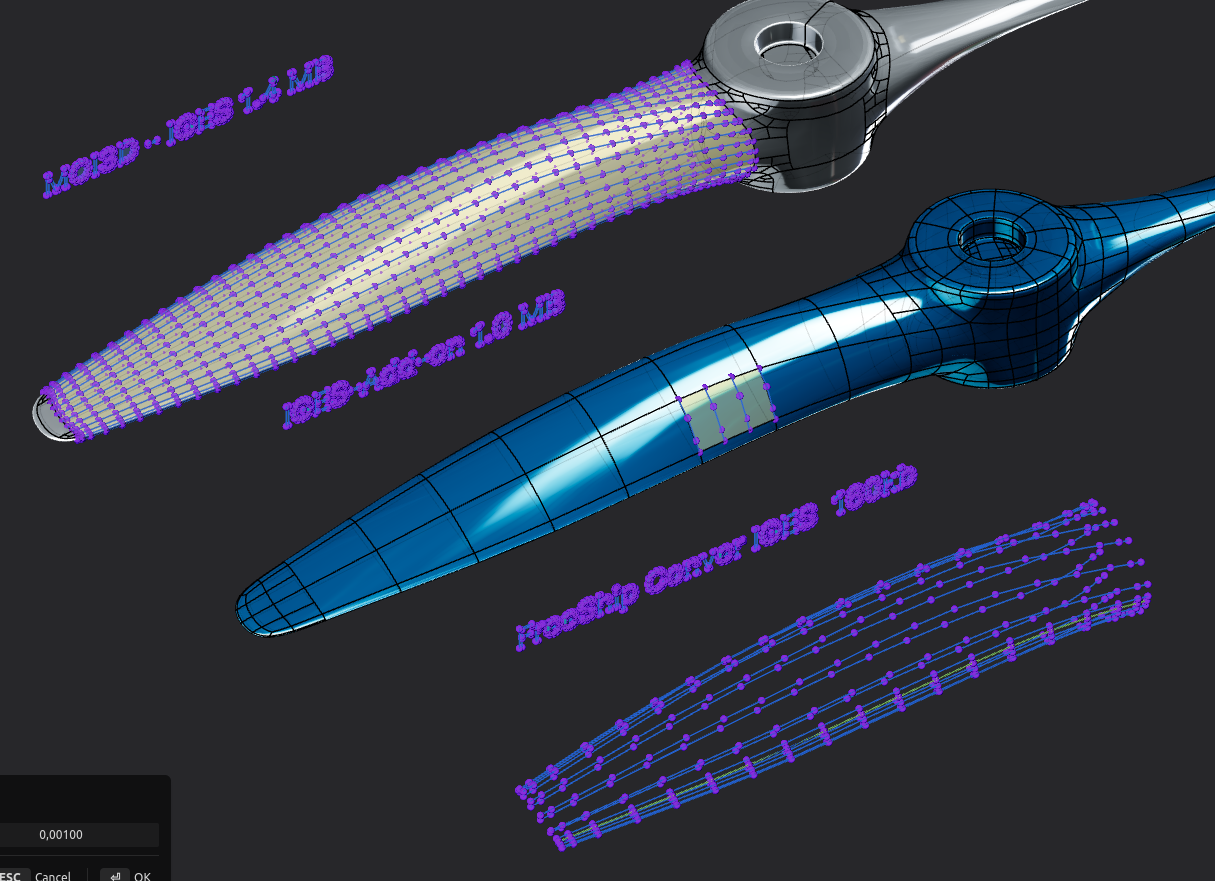

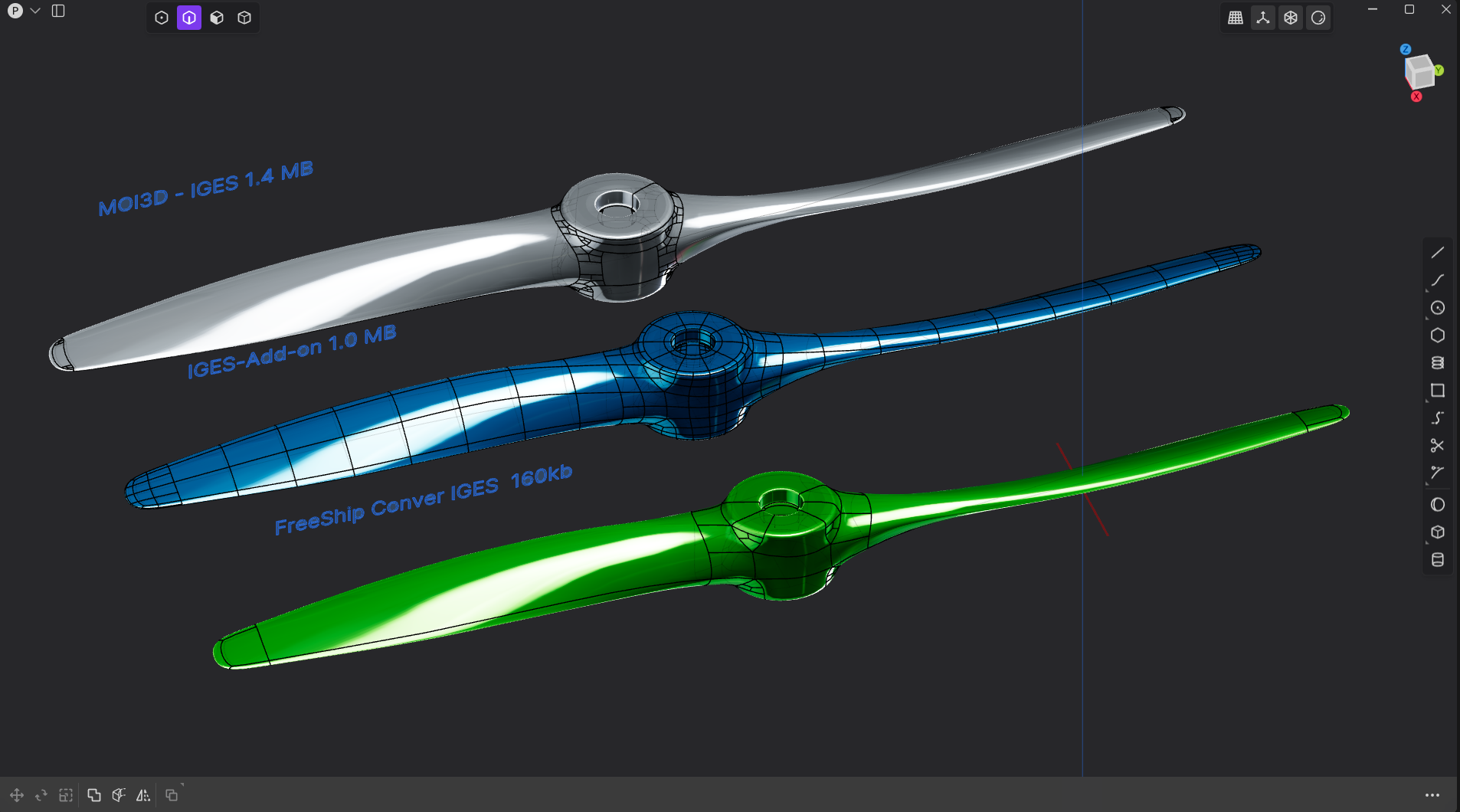

The #SubD conversion of #FreeShip into #IGES is still unmatched for me, is an old Pascal code that works perfectly, very light file with surfaces with the same topology of the mesh cages #nurbs #CAD #plasticity3D #Moi3D #b3d #Blender3D #fc3d #opensource

https://blenderartists.org/t/from-blender-subdivision-to-n-u-r-b-s-iges-for-free/

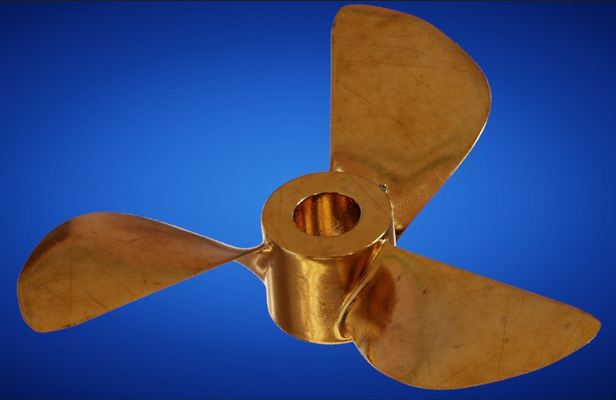

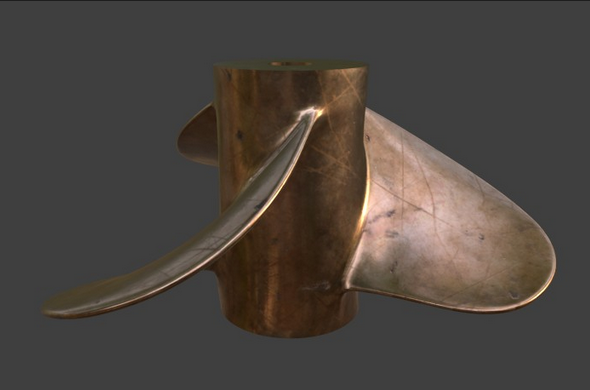

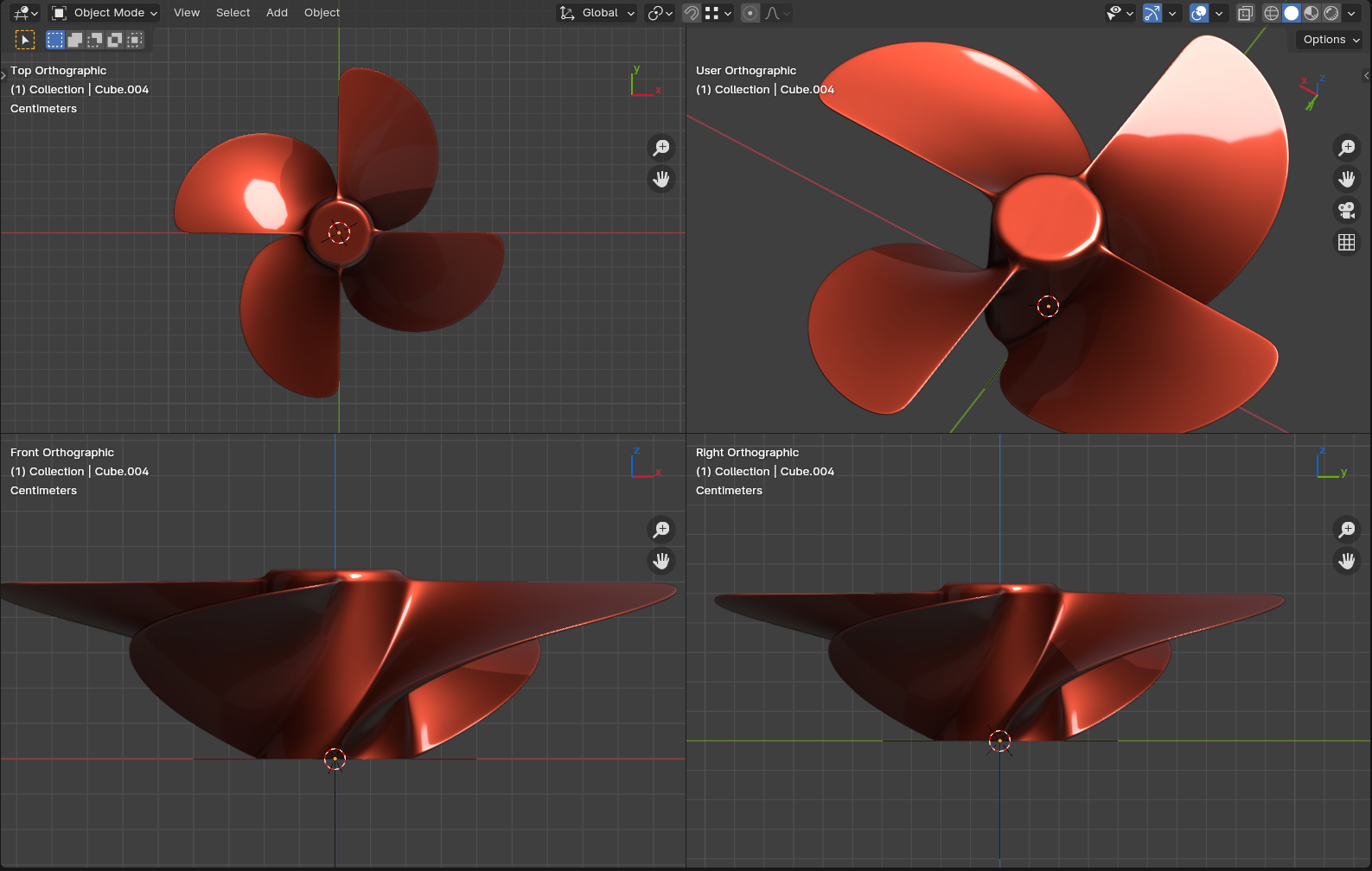

I've just dropped two #propellers done with #SubD in #Blender and converted into #IGES and then to other #CAD formats.
The models in low poly can be used with SubD modifier and they are also UV-mapped too. Useful for your #boats model in every place from #b3d to CADs. #Blender3D #boat #design
https://grabcad.com/pa.furijaz-1/models

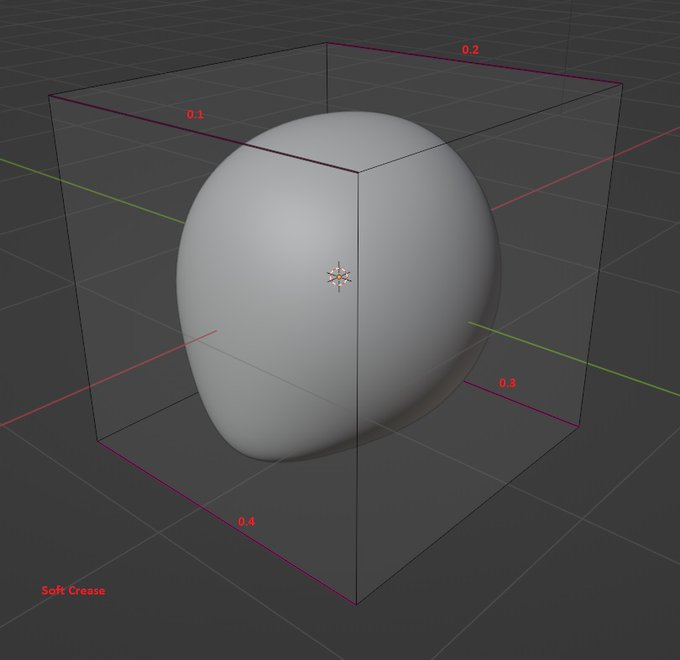

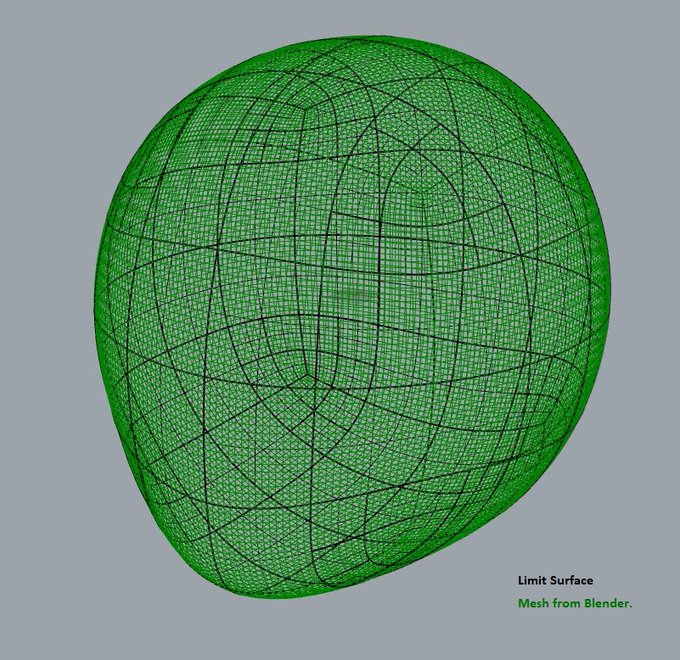

#ExportIGES #Addon updated to v 1.5.5 for #Blender v 4.0 Limit surface shape along soft creases now correctly coincides with the shape in Blender. #b3d #Blender3D #CAD #SubD to Nurbs as #IGES
https://www.digital-sculptors.com/cms/index.php/software/blender-plugins/63-export-iges.html

I am so happy with the result and I also have to share the rear of the stern with the #propellers mounted, before I used models already made or I made them schematic or with #SubD. This is the best I've modeled in #CAD, from now on things are simple. I get it how model a blade with airfoil, next step make one from a real 2D drawing.
I've seen some tutorials on YouTube and those are really bad. #ship #boat #design

This little asset loves crashing blender today.

A workflow that works with all OS.

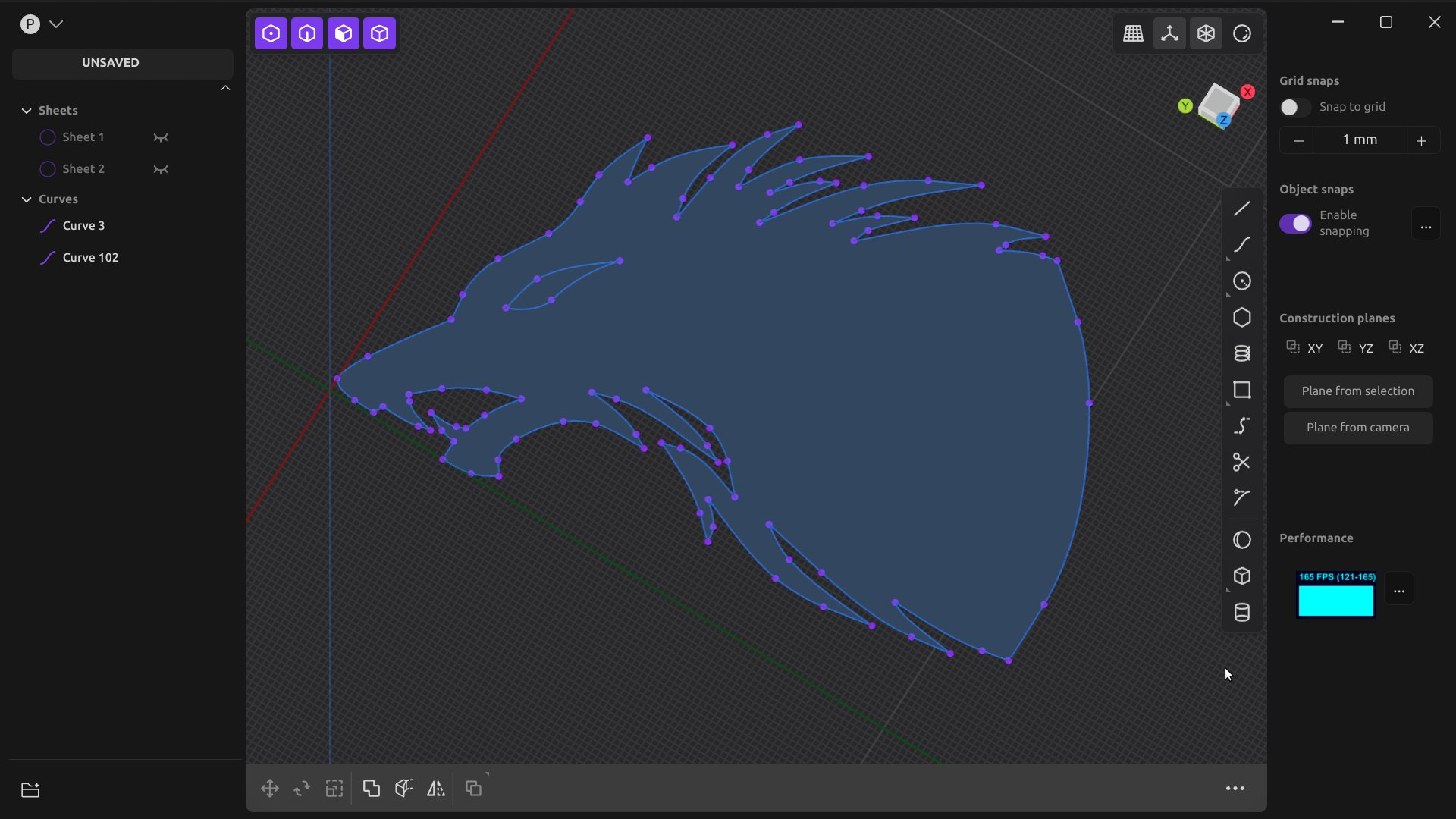

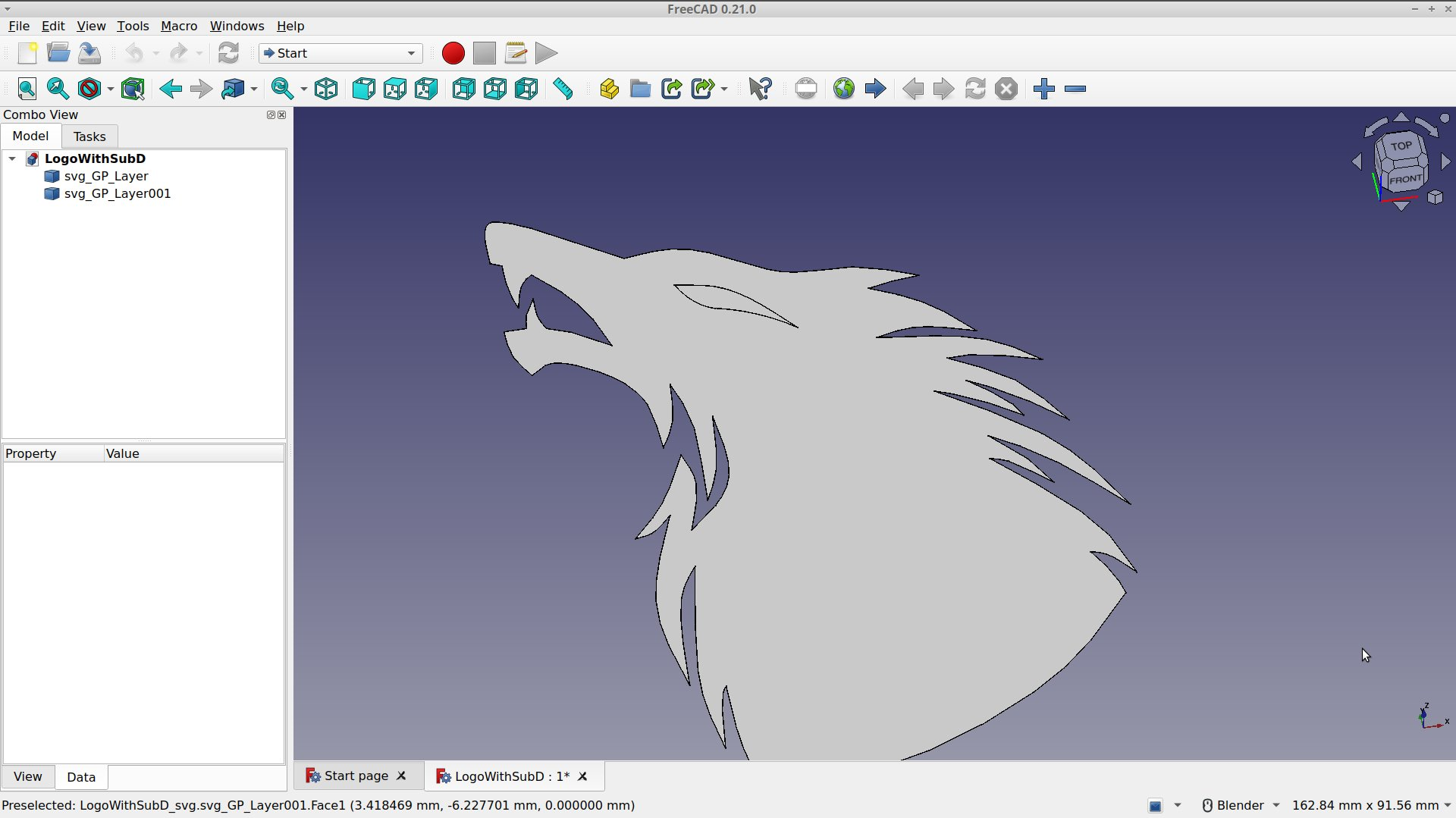

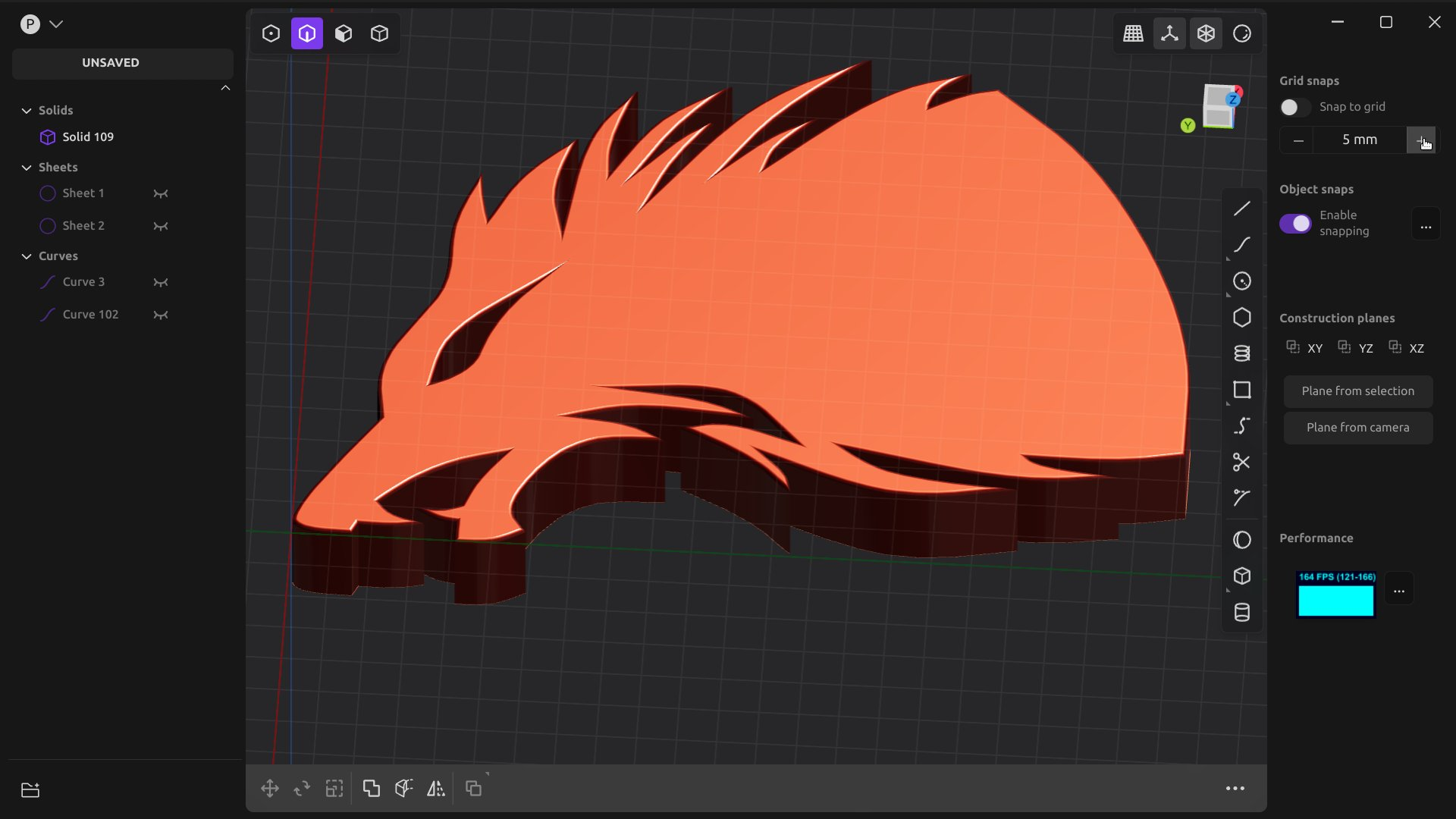

From #Blender3D to Plasticity via converting #SubD to Curve then into #Beziér and decimating with adaptive and exporting into #SVG with #LeoMoon Add-on and importing SVG into #FreeCAD and exporting into IGES or STEP and then import into Plasticity, however you can use this workflow your with preferred application.
#fc3d #b3d #Blender3d

LeoMoon Add-on for Blender
https://github.com/leomoon-studios/leomoon-bezier2svg/

Greetings.

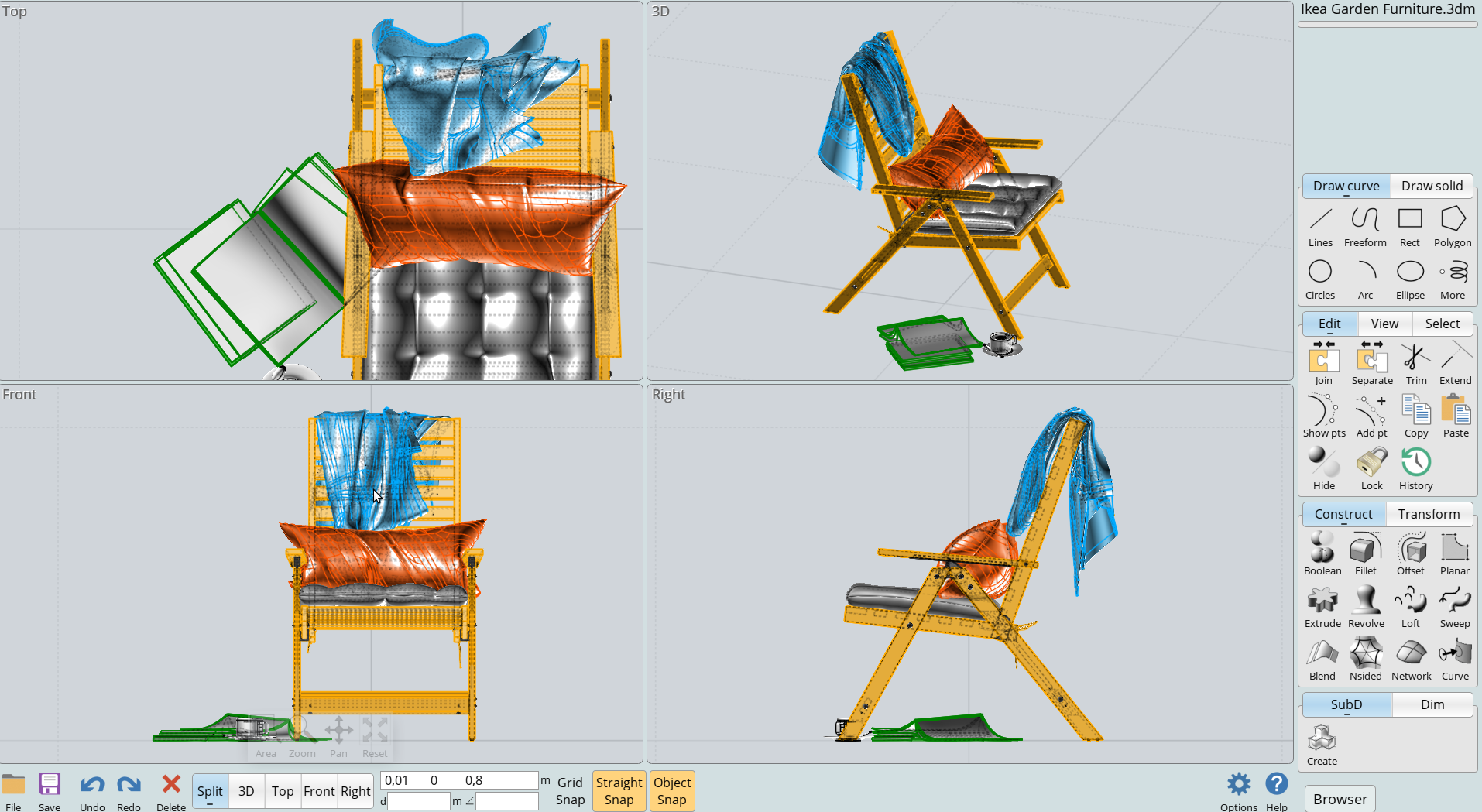

That's why you have to make models in #SubD with perfect topology, because anyone can use models even for furniture in #CAD models, not only in VFX.
the use of quad #topology is imperative
Below in the image a model converted with #FreeShip and #Moi3D in Nurbs #b3d #3dmodeling
